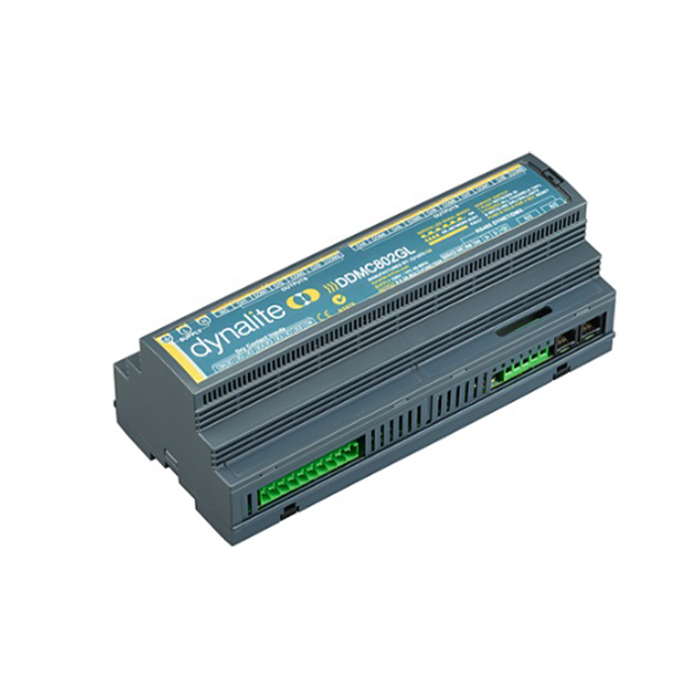

Dynalite DDMC802GL Multi Purpose Controller
PH913703026009
Free Delivery on orders over £150
| SKU | PH913703026009 |
|---|---|
| Brand | Dynalite |
| EAN Code | 913703026009 |
| Manufacturer's Part Number (MPN) | DDMC802GL |
| Manufacturer's Product Name | Multipurpose Modular Controller |
In stock
Only 10 left
Product Description
The DDMC802GL is an eight-channel mixed controller with a nominal load per channel of 2A. A variety of output modules are available to suit different types of loads and the DDMC802GL can accept up to four plug-in modules, which by their removable design, also facilitate ease of servicing. Available module types include:
- Trailing edge phase control dimmer, suitable for use with most types of dimmable electronic transformers.
- LED dimmer, suitable for main rated dimmable LED fittings.
- Leading edge phase control dimmer, suitable for incandescent lamps and some types of dimmable electronic transformers.
- HF Ballast controller, suitable for controlling DALI Broadcast, 1-10V and DSI ballasts and transformers.
- Relay module, suitable for most types of switched loads.
- Fan control module.
- Curtain control module. The device is DIN-rail mountable, designed to be installed in a switchboard, optionally next to circuit breakers feeding the circuits to be controlled.
The DDMC802GL is an eight-channel mixed controller with a nominal load per channel of 2A. A variety of output modules are available to suit different types of loads and the DDMC802GL can accept up to four plug-in modules, which by their removable design, also facilitate ease of servicing. Available module types include:
- Trailing edge phase control dimmer, suitable for use with most types of dimmable electronic transformers.
- LED dimmer, suitable for main rated dimmable LED fittings.
- Leading edge phase control dimmer, suitable for incandescent lamps and some types of dimmable electronic transformers.
- HF Ballast controller, suitable for controlling DALI Broadcast, 1-10V and DSI ballasts and transformers.
- Relay module, suitable for most types of switched loads.
- Fan control module.
- Curtain control module. The device is DIN-rail mountable, designed to be installed in a switchboard, optionally next to circuit breakers feeding the circuits to be controlled.
| SKU | PH913703026009 |
|---|---|
| Brand | Dynalite |
| EAN Code | 913703026009 |
| Manufacturer's Part Number (MPN) | DDMC802GL |
| Manufacturer's Product Name | Multipurpose Modular Controller |
