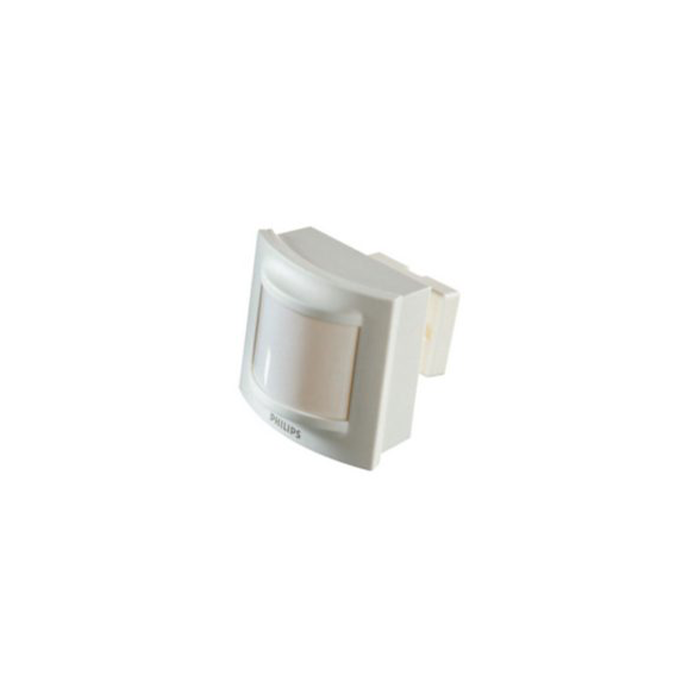

Philips Dynalite DUS90-AHB-D Wall/Ceiling Surface Sensor 90˚ Aisleway High Bay PE Cell DALI Single Master Port

Aisleway high bay DALI network sensor

The Philips Dynalite DUS90AHB-DALI is a 90-degree multifunction sensor that combines motion detection (PIR) and ambient light level detection (PE) in one device. The sensor uses the DALI protocol for power and communications to a network control system, eliminating the need for additional network field wiring. This sensor is ideal for mounting between warehouse shelving.

• DALI MultiMaster device – Designed to operate seamlessly with the Philips Dynalite DDBC120-DALI controller.
• Powered directly by the DALI network – Eliminates the need for any additional network field wiring.
• Motion detection feature – Detects the presence or absence of motion and triggers a programmed action.
• Ambient light level detection – In applications where it is critical to maintain precise lighting levels, the PE function reads ambient levels and adjusts artificial light accordingly.
• Daylight harvesting – When used in conjunction with networked open loop daylight sensor.
• Infrared receive capability – Enables sign-on identification to the networked system.
• Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.
• Targeted positioning – Directional wall-mounting block allows sensors to be easily mounted and directed to the required area.
• Dimensions:  66 x 70 x 61 mm (2.60 x 2.76 x 2.40 in)
