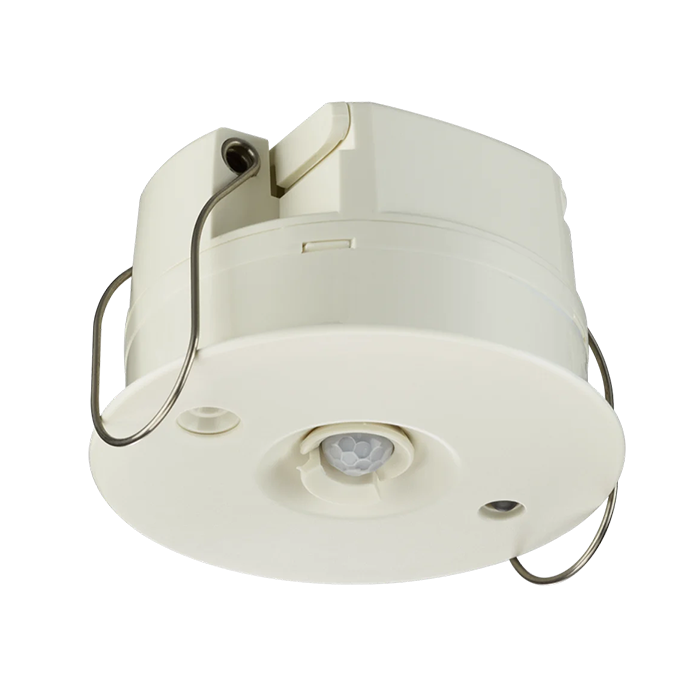

Philips Dynalite DUS360CR-D Ceiling Recessed Sensor 360˚ PE Cell DALI Single Master Port Pure White Finish
PH913703213009
5 Years Warranty
Free Delivery on orders over £150
| SKU | PH913703213009 |
|---|---|
| Brand | Philips |
| EAN Code | * |
| Manufacturer's Part Number (MPN) | 913703213009 |
| Manufacturer's Product Name | DUS360CR-D |
In stock
Product Description
Low profile recessed 360° ceiling sensor
The Philips Dynalite DUS360CR-DA is a recess mountable 360 degree motion sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into the one device. The Philips Dynalite DUS360CR-DA is a component of the EcoSet system and is a switchsettable sensor with time-out, designed to allow intelligent control of luminaires in combination with the DMRC210DA-RJ12 relay controller.
- Low profile design – Flush-mounted 360 degree ceiling-mount motion detection (PIR) sensor.
- No software set-up – All functionality can be achieved with the built-in DIP switches for area addressing, no-motion time-out and other advanced features.
- Rapid configuration – Up to 31 individual addressing areas of control. User-selectable options – No-motion time-out selectable to 30 seconds, 5 minutes, 15 minutes or 30 minutes.
- Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.
- Suitable for plenum use – UL approved for installation in air-handling plenum spaces.
- Dimensions: 72 dia. x 41 mm (2.83 dia. x 1.61 in)
Low profile recessed 360° ceiling sensor
The Philips Dynalite DUS360CR-DA is a recess mountable 360 degree motion sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into the one device. The Philips Dynalite DUS360CR-DA is a component of the EcoSet system and is a switchsettable sensor with time-out, designed to allow intelligent control of luminaires in combination with the DMRC210DA-RJ12 relay controller.
- Low profile design – Flush-mounted 360 degree ceiling-mount motion detection (PIR) sensor.
- No software set-up – All functionality can be achieved with the built-in DIP switches for area addressing, no-motion time-out and other advanced features.
- Rapid configuration – Up to 31 individual addressing areas of control. User-selectable options – No-motion time-out selectable to 30 seconds, 5 minutes, 15 minutes or 30 minutes.
- Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.
- Suitable for plenum use – UL approved for installation in air-handling plenum spaces.
- Dimensions: 72 dia. x 41 mm (2.83 dia. x 1.61 in)
| SKU | PH913703213009 |
|---|---|
| Brand | Philips |
| EAN Code | * |
| Manufacturer's Part Number (MPN) | 913703213009 |
| Manufacturer's Product Name | DUS360CR-D |
