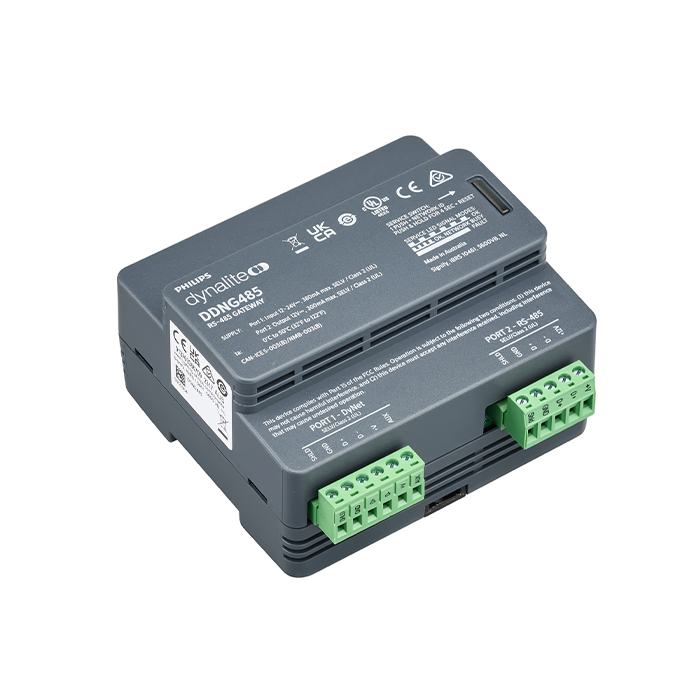

Philips Dynalite DDNG485 V3 Network Gateway - Bridge RS485
PH913703366709
5 Years Warranty
Free Delivery on orders over £150
| SKU | PH913703366709 |
|---|---|
| Brand | Philips |
| EAN Code | * |
| Manufacturer's Part Number (MPN) | 913703366709 |
| Manufacturer's Product Name | DDNG485 V3 - Network Gateway - Bridge RS485 <-> RS485 |
In stock
Product Description
DDNG485 RS-485/DMX512 Gateway
Flexible network communications gateway
The Philips Dynalite DDNG485 is a flexible network communications bridge designed for RS-485 networks. The two optically isolated RS-485 ports enable the DDNG485 to implement a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone optically coupled to many lower-speed spurs.
- Route DyNet to third-party systems – Such as audio-visual, Modbus meters, and building automation systems, providing an integrated approach to total building control and energy management.
- DMX512 mode – Transmit or receive up to 512 channels of DMX with automatic DyNet conversion and task triggering. Provides temporary control of house lights from the DMX console in an auditorium scenario
- Electrical fault isolation – Faults can be isolated to individual network spurs.
- Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering and DyNet to DyNet 2 translation.
- Flexible mounting solution – DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.
- Dimensions: 95 x 108 x 64 mm (3.74 x 4.25 x 2.52 in)
DDNG485 RS-485/DMX512 Gateway
Flexible network communications gateway
The Philips Dynalite DDNG485 is a flexible network communications bridge designed for RS-485 networks. The two optically isolated RS-485 ports enable the DDNG485 to implement a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone optically coupled to many lower-speed spurs.
- Route DyNet to third-party systems – Such as audio-visual, Modbus meters, and building automation systems, providing an integrated approach to total building control and energy management.
- DMX512 mode – Transmit or receive up to 512 channels of DMX with automatic DyNet conversion and task triggering. Provides temporary control of house lights from the DMX console in an auditorium scenario
- Electrical fault isolation – Faults can be isolated to individual network spurs.
- Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering and DyNet to DyNet 2 translation.
- Flexible mounting solution – DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.
- Dimensions: 95 x 108 x 64 mm (3.74 x 4.25 x 2.52 in)
