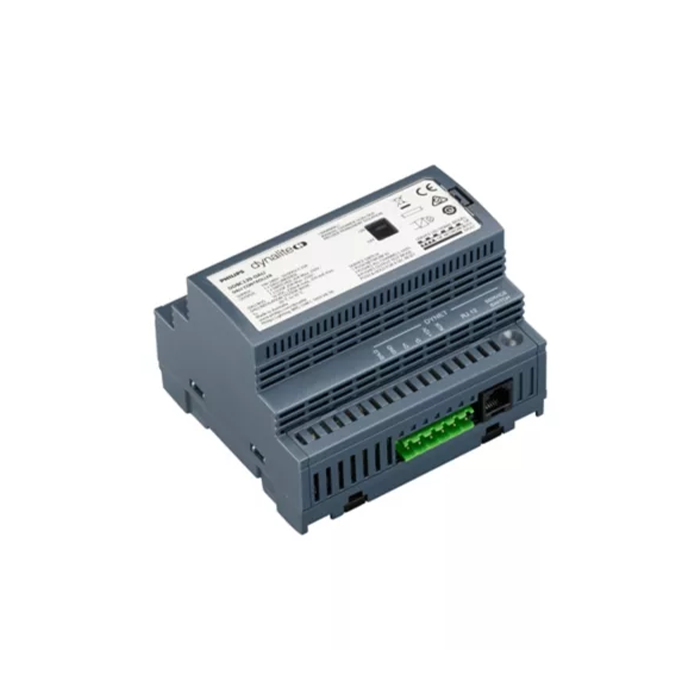

Philips Dynalite DDBC120-DALI v4 1 x Universe DALI2 Driver Controller

DDBC120-DALI DALI-2 Driver Controller

Full DALI–2 control solution with inbuilt DALI power supply and driver power management

The Philips Dynalite DDBC120-DALI is ideal for small-scale projects looking for a compact, all-in-one DALI control solution. This controller operates seamlessly with all other Dynalite controllers, sensors, user interfaces and head-end software.

• Single-master solution – Compatible with a range of DALI fittings and devices, including DALI fluorescent drivers, DALI electronic low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user interfaces.
• Auto–enumeration – Provides automatic enumeration of drivers when powered on and enables self-repair of the network if a driver fails and is replaced.
• Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
• Compatible with DALI 209 drivers – Provides control of tunable white luminaires.
• Dual functionality – Leverage advantages of a true DALI network solution, whilst still allowing the full functionality of DyNet network control.
• Built-in energy savings – Control signals can be configured to operate in tandem with the internal relay, which automatically isolates the power circuit when all associated channels are at 0%.
• Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
• Inbuilt diagnostic functionality – Features lamp and driver failure reporting, driver run time tracking for each driver, emergency test reporting and device/driver online/offline status indication.
• Dimensions:  96 x 105 x 75 mm (3.78 x 4.34 x 2.95 in)
