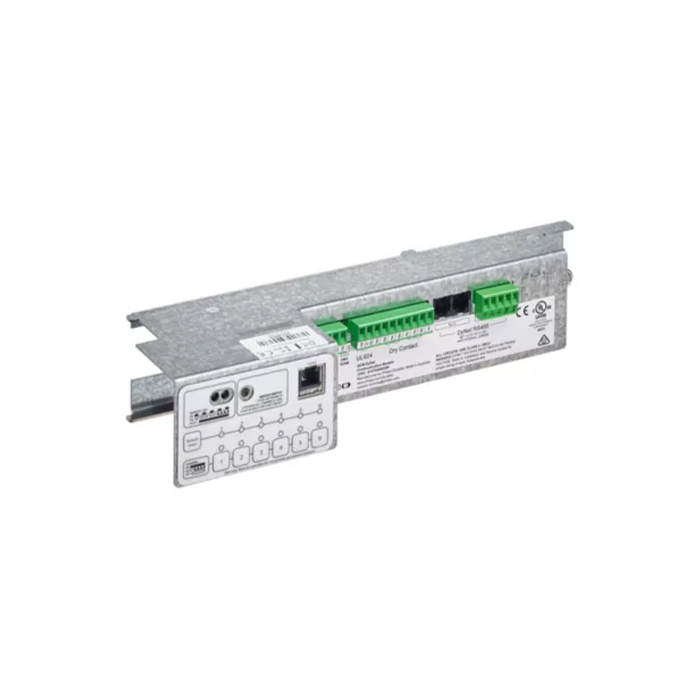

Philips Dynalite DCM-DyNet Communication Module

Dynalite Multipurpose Controllers

Within any project, many different lighting load types may be required to achieve a desired result. Each of these load types may require a different style of control. The Philips Dynalite range of multipurpose controllers allows customisation of output types via different output module units. When using DIN-rail multipurpose controllers, a specific type of control can be chosen for each circuit: relay, leading-edge dimmer, trailing-edge dimmer, ballast control, controller with out-of-the-box functionality, fan control, and blind/screen control. In any combination, multiple load types can be controlled from a single device. This simplifies installation and prevents wasted capacity of circuits that are not required.

Benefits

• Controllers support distributed intelligence, i.e. each device has a CPU with presets and can act as a stand-alone control unit
• Some devices have out-of-the-box functionality with re-configuration capability
• Simplified network messages and commissioning process

Features

• Controllers can directly drive the different lighting groups within projects
• Controllers support an industry-standard RS485 port to communicate with other devices on the DyNet network, as well as with 3rd-party devices like HVAC, network devices, user interfaces
• Available in both DIN-rail and wall-box configurations
• Devices can store over 170 presets, allowing recall of complex switching logic from simple network messages
• Preset scenarios are stored within each relay device

Application

Depends on the lighting system in which the controls are used
