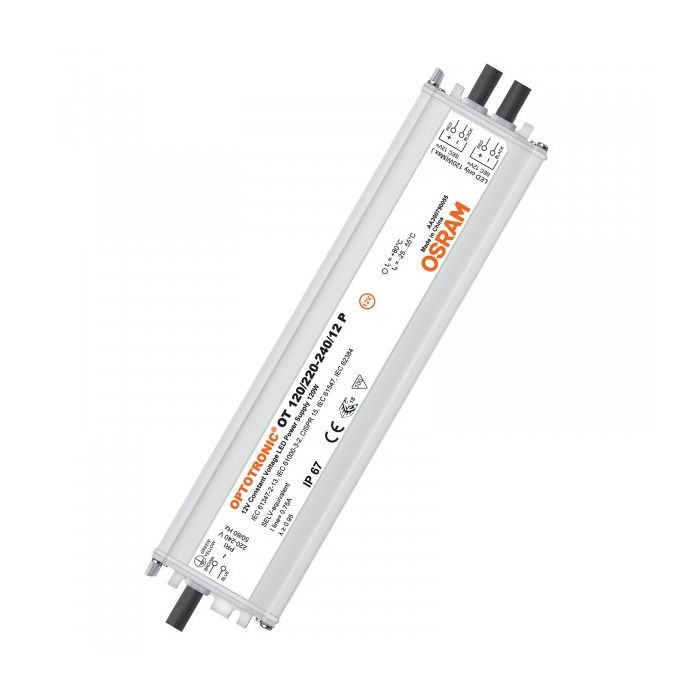

Osram OT120/200-240/12P LED Power Supply
for Same Day Dispatch
Osram OT 120/220-240/12 P
CV Power supplies 12 V
Product benefits
Versatile scope of application due to output power range of up to 120 W
Very high efficiency and reliability
High IP protection (IP67)
High surge protection: up to 3kV (L-N) / 6 kV (L/N-PE)
Areas of application
Suitable for indoor and outdoor installations
Ideal for mounting in very tight spaces
EAN: 4008321790835
Output power: 120 W
Partial load: 0 - 120 W
Input voltage: 198-264 V
Mains frequency: 50/60 Hz
Output voltage: 12.5 V (+/- 0.5V)
Nominal voltage: 220-240 V
Nominal current: 0.7 A
Device power losses: 18 W
Power factor (full load/half load and 230V): > 0.98 / 0.95
ECG efficiency (at full load and 230V): 88 %
Inrush current: 40 A
Max no. of ECGs on circuit breaker 10 A: 6
Max no. of ECGs on circuit breaker 16 A: 10
Galvanic isolation primary/secondary: 3.75 kV
Surge capability (L/N-Ground): 6 kV
Surge capability (L-N): 3 kV
Lenght: 250 mm
Width: 60 mm
Mounting hole spacing, lenght: 241.0 mm
Mounting hole spacing, width: 15.0 mm (side mounting)
Height: 39 mm
Product weight: 1150 g
Cable cross-section, input side: 1.0 sqmm
Cable cross-section, output side: 1.0 sqmm
Wire preparation lenght, input side: 10 mm
Casing material: Metal
Ambient temperature range: -25 +55 C
Temperature range at storage: -40 +85 C
Maximum temperature at tc test point: 80 C
Max. housing temperature in case of fault: 100 C
ECG lifetime (at Tc = 70C / 10% failure rate): 50000 h
Dimmable: Yes (using optotronic dimmers)
Suitable for fixtures with prot. class: II
Overheating protection: Automatic reversible
Overload protection: Automatic reversible
Short-circuit protection: Automatic reversible
No-load proof: Yes
Maximum wiring lenght ECG/lamp: 10 m
Type of protection: IP67
Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547
Approval marks: CE / ENEC 18 / CB / C-Tick
Manufacturers Website: www.osram.com/osram_com/products/led-technology/indoor-ecg-for-led-modules-and-dimmers/constant-voltage-non-dimmable/cv-power-supplies-12-v/
SKU | LFBALOSOT120/220-240/12P |
---|---|
Voltage | 12v / Low Voltage |
Wattage | 120W |
Code | LFBALOSOT120/200-240/12P |
EAN Code | 4008321790835 |
Brand | Osram |
