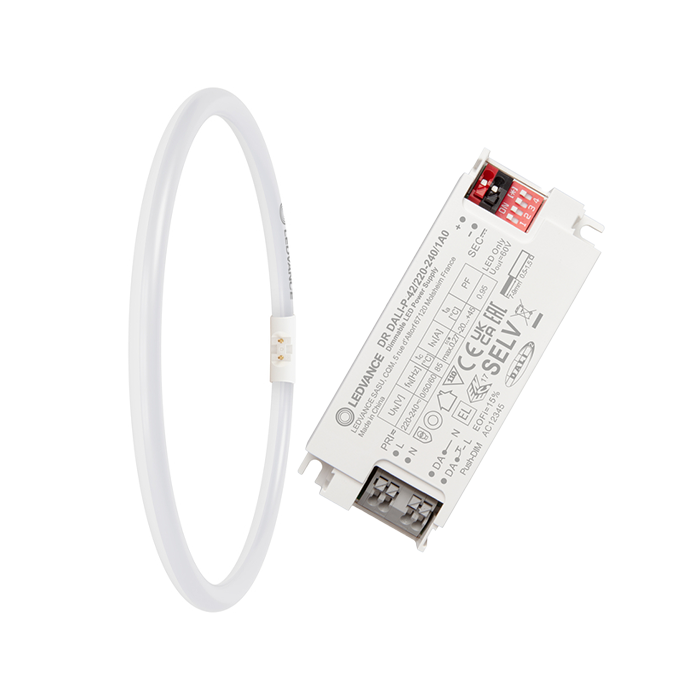

Ledvance T5 Circular LED Tube & Driver Bundle

Ledvance T5 Circular LED Tube & DALI Driver Bundle

Product Overview

The Ledvance T5 Circular LED Tube, supplied together with the compatible LED Driver DALI Performance, provides a reliable and energy-efficient upgrade for traditional T5 fluorescent circular lamps. Designed for commercial and professional installations, this bundle ensures seamless performance and long-term savings while eliminating the compatibility issues often associated with ballasts and legacy control gear.

Important installation note: To operate correctly, the existing electronic control gear or ballast must be bypassed or removed. The LED tube is not suitable for direct connection to 230 V mains or operation with conventional ballasts.

Key Benefits

• Complete bundle: T5 Circular LED Tube with the required DALI Performance driver
• Simple upgrade path to a fully dimmable LED system
• No ballast compatibility check required – connect directly via supplied driver
• Long service life: up to 50,000 hours (L70/B50 at 25 °C)
• Excellent light quality with low flicker and smooth dimming from 1–100%
• 5-year guarantee for peace of mind

Applications

This system is designed for hospitality and commercial environments where reliable, high-quality lighting is essential:

• Retail spaces and showrooms
• Hotels, restaurants, and hospitality venues
• Public buildings and offices
• Education and storage facilities
• Cove lighting and decorative commercial installations

LED Tube Features

• Single-ended circular LED lamp (T5 replacement)
• Operates in ambient temperatures from -20 °C to +45 °C
• Designed for use exclusively with LED Driver DALI Performance
• LED replacement for traditional T5 fluorescent circular lamps
• Robust and long-lasting performance for commercial use

Driver Features

• DALI-2 certified (Parts 251, 252, 253)
• Flexible dip-switch current settings in 50 mA steps
• Push DIM functionality for easy on-site control
• Very long lifetime: up to 100,000 hours
• SELV (< 60 V) operation for safe installation
• Suitable for use in emergency lighting systems (EN 60598-2-2)
• Quick, toolless installation with supplied cable clamps

Safety & Installation Notes

• Installation must be carried out by a qualified electrician.
• Disconnect mains power before installation.
• The tube must not be operated with 230 V line voltage or existing electronic control gear – bypass or remove the ballast.
• If unsure about application suitability, measure the Tc point on the lamp during operation to verify correct thermal performance.
• Indoor use only.
