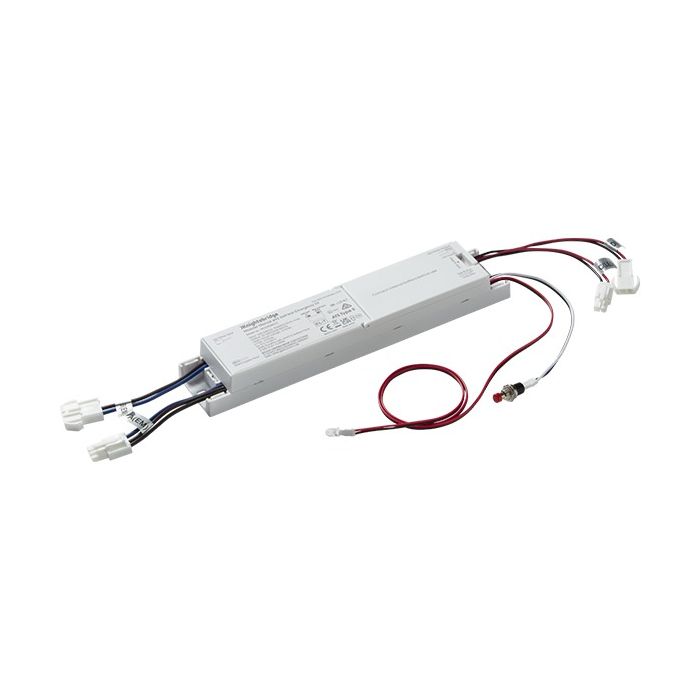

Knightsbridge MODEMKIT2 3W Modular Self-Test Emergency Conversion Kit

Knightsbridge MODEMKIT2 Modular Emergency Conversion Kit

The Knightsbridge MODEMKIT2 emergency conversion kit adds emergency-lighting functionality to compatible Knightsbridge modular LED luminaires. Its plug-in design allows suitable battens and non-corrosive fittings to be converted without replacing the complete luminaire.

The kit includes a rechargeable lithium iron phosphate LiFePO4 battery capable of providing up to three hours of emergency operation. A built-in selector allows the unit to be configured for either conventional manual testing or automatic self-test operation.

Please check the exact luminaire model for compatibility before ordering or installing this conversion kit.

Manual or Self-Test Emergency Operation

The dual-mode system allows the installer to choose between two emergency testing arrangements:

• Manual emergency mode: emergency tests are initiated and recorded as part of the building’s planned maintenance programme
• Self-test emergency mode: the emergency module automatically performs scheduled functional and duration tests

The required mode is selected using a switch on the module, allowing the same kit to suit different emergency-lighting management systems.

Maintained and Non-Maintained Configurations

The MODEMKIT2 supports maintained, non-maintained and switched emergency operation when installed in a compatible luminaire:

• Maintained: the luminaire operates normally and continues at its emergency output following a mains failure
• Non-maintained: emergency illumination activates only when the mains supply fails
• Switched maintained: normal illumination can be switched while the emergency circuit remains permanently supplied

Three-Hour LiFePO4 Battery

The integrated LiFePO4 battery provides up to three hours of emergency operation following a mains power failure. The battery is covered by the product’s five-year manufacturer’s warranty.

Actual emergency light output will depend on the compatible luminaire in which the module is installed.

Compatible Knightsbridge Luminaires

The MODEMKIT2 is designed for selected modular Knightsbridge lighting ranges, including:

• BATM series 3ft modular LED battens
• BATM series 4ft modular LED battens
• BATM series 5ft modular LED battens
• BATM series 6ft modular LED battens
• Compatible PRECW Precept luminaires
• Compatible 230V Helix modular non-corrosive fittings

Compatibility can vary between individual models and product generations. Confirm that MODEMKIT2 is listed for the chosen luminaire before installation.

Compact Modular Design

The module measures 220mm long, 43mm wide and 26mm high. Its compact polycarbonate casing is designed to fit within the appropriate modular compartment of a compatible luminaire.

Key Features

• 3W modular emergency conversion kit
• Compatible with selected Knightsbridge modular luminaires
• Manual or self-test emergency mode
• Mode selectable using an integral switch
• Maintained, non-maintained or switched operation
• Three-hour emergency duration
• LiFePO4 rechargeable battery
• Compact plug-in modular construction
• Suitable for selected 3ft, 4ft, 5ft and 6ft BATM battens
• Suitable for selected Precept luminaires
• Suitable for selected Helix non-corrosive fittings
• Class II double-insulated construction
• Five-year manufacturer’s warranty, including the battery

Product Specifications

Compatibility note: This product is an emergency conversion module rather than a standalone emergency light. It must be installed inside a specifically compatible Knightsbridge luminaire by a suitably qualified person.
