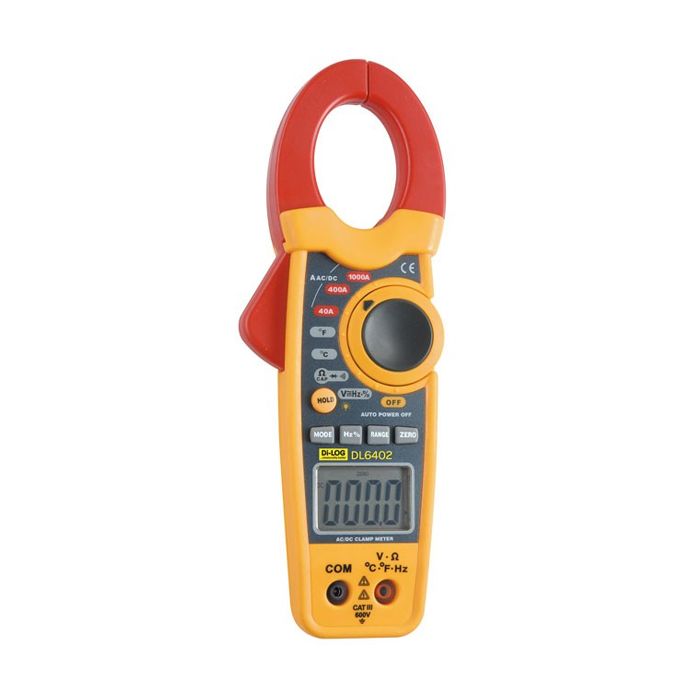

Di-Log 1000A AC/DC Clamp Meter
DL6402
Free Delivery on orders over £150
| SKU | DL6402 |
|---|
In stock
Product Description
With inclusion of DC current temperature & capacitance readings, this clamp meter is the ideal all purpose instrument.
The slim design combined with the tear shaped jaw makes it an ideal unit for use in crowded panels and tight spaces.
The data hold and peak capture function makes this a versatile and cost effective clamp meter.
Features:
- Audible Continuity
- Temperature thermocouple and K-Type adaptor supplied
- Frequency and capacitance
- 30 mm jaw opening
- 1000 AC/DC Current reading
- Electronic overload protection
- A large easy to see back lit display
- AC/DC voltage up to 600V
Specifications
| Measurement | Range | Basic Accuracy |
| AC Current | 0.01A - 1000A | 3% ± 5 dgts |
| DC Current | 0.01A - 1000A | 2.8% ± 5 dgts |
| AC Voltage | 0.1mV - 600V | 1.8% ± 3 dgts |
| DC Voltage | 0.1mV - 600V | 1.5% ± 3 dgts |
| Resistance | 0.1Ω - 40MΩ | 1.5% ± 2 dgts |
| Capacitance | 40.00nF – 100.0uF | 3% ± 5 dtgs |
| Frequency | 0.001Hz – 100.0kHz | 1.2% ± 2 dgts |
| Temperature | -20°C - 1000°C -4°F - 1832°F |
±3.0 % of rdg ± 5 dgts ±3.0 % of rdg ± 7 dgts |
| Diode Test | 1.5V DC Typical | N/A |
| Power supply | 1 x 9 V battery PP3 | |
| Dimensions | 229 x 80 x 49 mm | |
| Weight | 303g |
With inclusion of DC current temperature & capacitance readings, this clamp meter is the ideal all purpose instrument.
The slim design combined with the tear shaped jaw makes it an ideal unit for use in crowded panels and tight spaces.
The data hold and peak capture function makes this a versatile and cost effective clamp meter.
Features:
- Audible Continuity
- Temperature thermocouple and K-Type adaptor supplied
- Frequency and capacitance
- 30 mm jaw opening
- 1000 AC/DC Current reading
- Electronic overload protection
- A large easy to see back lit display
- AC/DC voltage up to 600V
Specifications
| Measurement | Range | Basic Accuracy |
| AC Current | 0.01A - 1000A | 3% ± 5 dgts |
| DC Current | 0.01A - 1000A | 2.8% ± 5 dgts |
| AC Voltage | 0.1mV - 600V | 1.8% ± 3 dgts |
| DC Voltage | 0.1mV - 600V | 1.5% ± 3 dgts |
| Resistance | 0.1Ω - 40MΩ | 1.5% ± 2 dgts |
| Capacitance | 40.00nF – 100.0uF | 3% ± 5 dtgs |
| Frequency | 0.001Hz – 100.0kHz | 1.2% ± 2 dgts |
| Temperature | -20°C - 1000°C -4°F - 1832°F |
±3.0 % of rdg ± 5 dgts ±3.0 % of rdg ± 7 dgts |
| Diode Test | 1.5V DC Typical | N/A |
| Power supply | 1 x 9 V battery PP3 | |
| Dimensions | 229 x 80 x 49 mm | |
| Weight | 303g |
| SKU | DL6402 |
|---|
