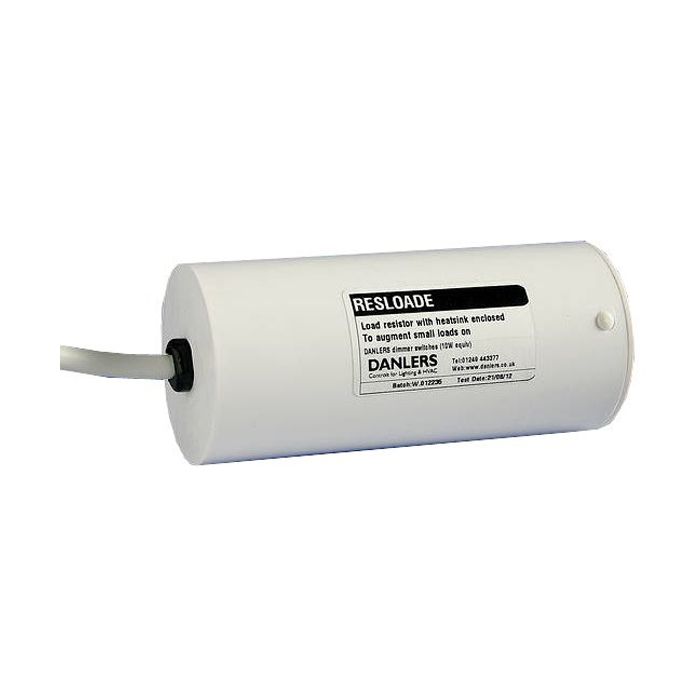

Danlers RESLOADE - Dimming Load Resistor
DANLERSRESLOAD
Free Delivery on orders over £150
| SKU | DANLERSRESLOAD |
|---|---|
| Voltage | 230v / Mains Voltage |
| Wattage | 10W |
| Code | DANLERSRESLOAD |
| EAN Code | 39112102 |
| Brand | Danlers |
In stock
Product Description
- The RESLOAD is designed for Danlers Grid trailing edge dimmers (DQDGD) when dimming LED lamps and any other use of this product will invalidate our warrantee.
- The RESLOAD must be connected to Earth.
- For direct mains dimmable lamps the RESLOAD is connected at a suitable light fitting, in parallel across the load, between the dimmed variable live and neutral.
- For mains dimmable transformers the RESLOAD is connected across the primary (variable mains input) side of the transformer.
- The RESLOAD is designed to be placed into the ceiling void and can be passed through a 63mm diameter cutout, the typical size for down lighters.
- The RESLOAD has an effective load of 10W and an operating temperature of approximately 40°C above ambient. It should be installed where air flow is not restricted.
- It should not be covered by insulating materials or positioned near any heat sources or heat sensitive objects.
- The RESLOAD is designed for Danlers Grid trailing edge dimmers (DQDGD) when dimming LED lamps and any other use of this product will invalidate our warrantee.
- The RESLOAD must be connected to Earth.
- For direct mains dimmable lamps the RESLOAD is connected at a suitable light fitting, in parallel across the load, between the dimmed variable live and neutral.
- For mains dimmable transformers the RESLOAD is connected across the primary (variable mains input) side of the transformer.
- The RESLOAD is designed to be placed into the ceiling void and can be passed through a 63mm diameter cutout, the typical size for down lighters.
- The RESLOAD has an effective load of 10W and an operating temperature of approximately 40°C above ambient. It should be installed where air flow is not restricted.
- It should not be covered by insulating materials or positioned near any heat sources or heat sensitive objects.
| SKU | DANLERSRESLOAD |
|---|---|
| Voltage | 230v / Mains Voltage |
| Wattage | 10W |
| Code | DANLERSRESLOAD |
| EAN Code | 39112102 |
| Brand | Danlers |
